Graphite Electrode Lifting Plug
Types: Normal, rotatable, and rotatable with shock absorption
Specifications: Diameters range from 177.17 mm to 431.8 mm, and products can be customized according to needs.
Graphite electrodes need to be assembled before being used in the field, requiring a lift plug. The graphite electrode lifting plug is a professional tool providing safety for the use of graphite electrodes. Due to the electrodes’ long length, large volume, and heavy weight, they are inconvenient to load, unload, assemble, connect, and fix. The graphite electrode lifting plug protects the electrode in these scenarios, greatly improving work efficiency and reducing loss.
Classification of Graphite Electrode Lifting Plug
Ordinary
The most basic model, suitable for most standard EAF configurations.
- Simple cylindrical design without additional complex mechanical components.
- High-strength graphite material ensures good high-temperature resistance and corrosion resistance.
- Easy to install and use with low maintenance costs.
- Economical and suitable for factories with limited budgets.
Rotatable Type
Allows electrode position adjustment without interrupting the smelting process.
- Includes a rotatable mechanism for fine-tuning electrode position within the furnace.
- Complex design with rotary interfaces and fixtures.
- Greater operational flexibility to adapt to different smelting needs.
- Helps control the smelting process more precisely and improve product quality.
Rotatable Type with Shock Absorption
Combines rotatable features with added shock absorption for improved operating stability.
- The structure includes a rotating mechanism and a built-in shock absorber.
- Integrated advanced shock absorption system to reduce vibration during the smelting process.
- Significantly reduces the risk of equipment wear and electrode breakage.
- Improves overall smelting efficiency and product consistency.
Graphite Electrode Lift Plug Specification
| Graphite Electrode Lift Plug Specification | ||||||||||
| Item | Graphite Pin Size | Small Lifting Bail | Medium Lifting Bail | Large Lifting Bail | Plug Capacity | |||||
| 9″ H × 8″ W | 19″ H × 8″ W | 39″ H × 8″ W | ||||||||
| mm | in | kg | lbs | kg | lbs | kg | lbs | kg | lbs | |
| GPL-01 | 177.17 | 6.975 | 17 | 38 | 24 | 54 | 45 | 99 | 1089 | 2400 |
| GPL-02 | 203.2 | 8.5 | 19 | 41 | 26 | 58 | 47 | 103 | 1860 | 4100 |
| GPL-03 | 222.25 | 8.75 | 19 | 42 | 27 | 59 | 47 | 104 | 1860 | 4100 |
| GPL-04 | 241.3 | 9.5 | 21 | 46 | 29 | 63 | 49 | 108 | 2359 | 5200 |
| GPL-05 | 269.88 | 10.625 | 29 | 63 | 38 | 84 | 59 | 131 | 3583 | 7900 |
| GPL-06 | 298.45 | 11.75 | 33 | 73 | 43 | 94 | 64 | 141 | 5897 | 13000 |
| GPL-07 | 317.5 | 12.5 | 34 | 75 | 44 | 96 | 65 | 143 | 5897 | 13000 |
| GPL-08 | 374.65 | 14.75 | 52 | 115 | 62 | 136 | 83 | 183 | 8165 | 18000 |
| GPL-09 | 406.4 | 16 | 60 | 133 | 70 | 154 | 91 | 201 | 9525 | 21000 |
| GPL-10 | 431.8 | 17 | 73 | 161 | 83 | 182 | 104 | 229 | 9979 | 22000 |
AGRM is a professional graphite electrode supplier with many years of export experience. Our products include graphite electrodes (RP graphite electrodes, HP graphite electrodes, SHP graphite electrodes, UHP graphite electrodes), graphite blocks, graphite crucibles, graphite plates, and more. Our manufacturing plant has passed the ISO 9001:2015 system certification. Our team possesses strong capabilities in graphite research and development as well as significant production capacity. We provide diverse, high-quality graphite electrode solutions for various applications.
If you have any questions or would like to receive a direct quotation, please contact us promptly. We will provide you with a comprehensive solution and detailed quotation tailored to your production needs!
Advantages of AGRM Graphite Electrode Lifting Plug
- High-Temperature Resistance
Made of certified high-quality steel and authentic graphite parts, ensuring excellent resistance to high temperatures and corrosion.
- Corrosion Resistance
Operates in various chemical environments without erosion, reducing replacement frequency and extending service life.
- Wear Resistance
Produced through advanced manufacturing processes and strict quality control, ensuring excellent wear resistance and reducing wear effectively.
- Precise Electrode Control
Allows for precise electrode position adjustment, optimizing arc control and heat distribution, thereby speeding up smelting and increasing production efficiency.
- Operational Flexibility
Wide selection of products to meet different smelting needs; all types are user-friendly and easy to install and operate.

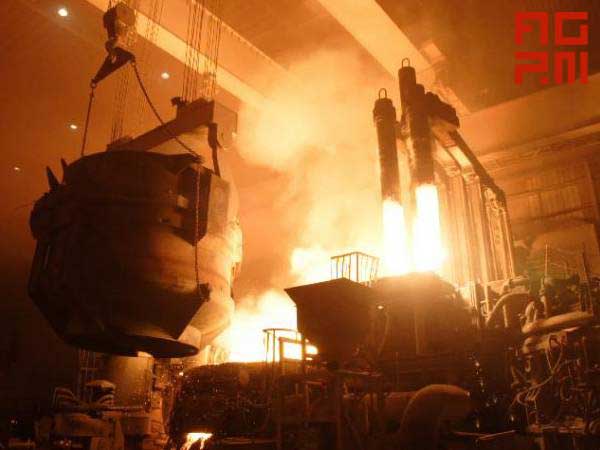

Application of Graphite Electrode Lifting Plug
- Electrode Positioning Optimization
Fine-tunes the electrode to ensure its optimal position in the furnace.
- Electrode Replacement and Maintenance
Facilitates convenient lifting and positioning of electrodes for regular checks and replacements.
- Coping with Unstable Factors in the Furnace
Rapid adjustment of electrodes to handle temperature fluctuations and material additions during the melting process.
- Adaptation to Different Smelting Stages
Adaptable to the specific needs of different smelting stages such as preheating, melting, and refining.
Precautions
- Ensure Equipment Cleanliness
Ensure the contact surface between the equipment and the lifting plug is dry and clean before installation, free of oil, dust, and impurities to maintain electrical conductivity and efficiency.
- Appropriate Fastening Force
Apply an even and appropriate fastening force during installation. Too loose may result in poor contact, and too tight may cause material damage.
Avoid Violent Collisions: Handle and install the lifting plug carefully to prevent surface damage.
- Regular Inspection and Maintenance
Check the wear of the lift plug regularly, especially the contact surface and key parts, and replace it when necessary.
- Comply with Operation Specifications
Follow the operation specifications and safety guidelines in the manual to avoid equipment damage and potential security risks.
- Preheating Treatment
Gradually preheat the lifting plug before starting high-temperature equipment to prevent cracks and damage from thermal expansion.
After-Sales Service
- Quality Assurance
We guarantee the quality of all graphite electrode lifting plugs shipped. We will provide a return or exchange service for any quality problems found after receiving the goods.
- Technical Support
Professional technical support is available to help solve installation and usage issues. Customers can get help via email, phone, or online customer service.
- Damaged Return
Repair or replacement services are available for products damaged by non-human causes during their lifetime.
FAQs
How long is the service life of a graphite electrode lifting plug?
Service life varies according to the frequency of use and maintenance, in general, each lift plug can be used for a few months to a year.
How to install the graphite electrode lifting plug correctly?
Follow the installation guide we provide or contact technical support for detailed instructions. Improper installation may affect the performance and life of the lift plug.
What if the received product is damaged?
If you receive a product with shipping damage or any quality issues, please contact our customer service team immediately with photos and details. We will arrange a replacement or refund as soon as possible.
How do I handle returns?
If you need to return the goods, please contact us within 14 days of receipt of the return procedure. The product needs to be kept in its original condition and properly packaged for a refund.
Do graphite electrode lifting plugs require special storage conditions?
No special storage conditions are required, but should be stored in a dry, clean, and moderate-temperature environment, avoiding direct exposure to sunlight or damp places.
How long does it take to customize the product?
The time it takes to customize a product depends on the complexity of the design and the number of orders. Typically, it takes 4-6 weeks from the confirmation of the design to the completion of production.
Can it be used for all types of electric arc furnaces?
Our graphite electrode lift plugs are designed to work with most standard electric arc furnaces, but customers are advised to provide specific furnace types and electrode specifications to ensure compatibility.
How do I know about product compatibility and specification selection?
Please contact our sales team and provide your specific electric arc furnace model and related parameters, we will recommend the most suitable lifting plug products according to your specific situation.
