Graphite Blocks For Sale
Particle size: 0.2mm, 0.4mm, 0.8mm, 2mm, 4mm, etc.
Forming methods: Extrusion, compression molding, isostatic pressing, vibration.
Dimensions: A variety of specifications and sizes are available for selection. The maximum dimensions can reach 2600 mm in length, 850 mm in width, and 850 mm in height.
Graphite blocks are block-shaped graphite products made from natural or synthetic graphite as raw materials. They are multifunctional materials with high bulk density, low electrical resistivity, oxidation resistance, corrosion resistance, high-temperature resistance, and good electrical conductivity. Not only do they play an important role in industry due to their unique physical and chemical properties, but they are also widely used in various manufacturing fields because of their machinability. The production process of graphite blocks is roughly similar to that of graphite electrodes, but they are not by-products of graphite electrodes.
Graphite Block Classification
- Fine-particle graphite block
Suitable for precision applications requiring high electrical and thermal conductivity.

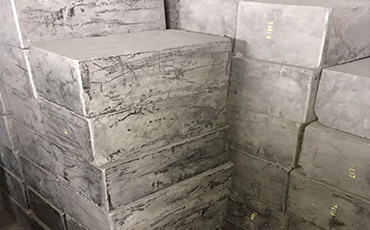

- Medium-coarse particle graphite block
Offering a balance between cost and performance, it is widely used.

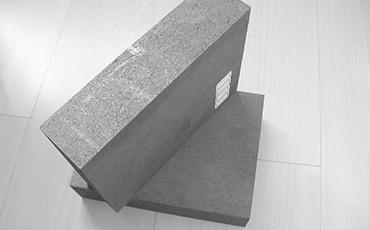

- Coarse-particle graphite block
Used for specific industrial applications, such as fillers or refractory materials.
Manufacturing Process of Graphite Blocks
Extrusion
Graphite powder is placed into an extruder and formed by being pressed through a die of a specific shape under high pressure.
Compression-molded
Graphite powder is placed in a metal mold, then a press is used to apply pressure to form the powder into the desired shape within the mold. This method is suitable for producing parts with complex shapes and precise dimensions.

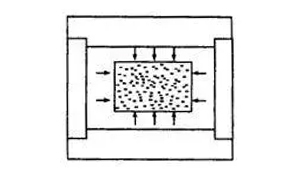

Isostatic pressed
Isostatic pressing is a more advanced method that uses rubber or plastic molds to densify the graphite powder by applying high pressure uniformly in all directions (several tens to hundreds of megapascals).
Vibration
During the vibration-forming process, graphite powder is filled into a rubber mold and densified through high-frequency electromagnetic vibration. This method helps improve the flowability of the powder and reduce voids, thereby achieving higher product density.
AGRM is a professional graphite product and graphite electrode supplier from China with years of export experience. We are committed to providing high-quality graphite blocks to meet the high standards of different industries. Additionally, we manufacture a variety of other graphite products, including graphite electrodes, graphite crucibles, graphite sheets, graphite felt, etc.
Physical And Chemical Indexes Of Graphite Blocks
| Physical And Chemical Indexes | |||||
| Item | sk/pc001-2008 | sk/qc002-2008 | |||
| Premium | First | Premium | First | ||
| Ash Content % | ≤ | 0.5 | 0.5 | 0.4 | 0.4 |
| Resistivity | ≤ | 10 | 11 | 7 | 8 |
| Compressive Strength | ≥ | 22 | 20 | 25 | 22 |
| Bulk Density g/cm³ | ≥ | 1.6 | 1.58 | 1.7 | 1.65 |
| True Density g/cm³ | ≥ | 2.2 | 2 | 2.2 | 2.2 |
| Thermal Expansion Coefficient 10^-6/℃ (100-600℃) | ≥ | 3.2 | 2.9 | 2.4 | 2.2 |
| Modulus of Elasticity GPa | ≤ | 9.3 | 13.7 | 14 | 12 |
Why Choose AGRM?
- Selective raw materials
Ensuring product quality from the source.
- Advanced Technology
Employing the most advanced production technology and equipment in the industry to ensure product performance and consistency.
- Quality Control
Implementing a strict quality monitoring system during production, with rigorous checks at every step.
- Competitive Price
Offering competitive prices to customers by optimizing production processes and large-scale production.
- Customization Services
Providing customized sizes and specifications to meet the specific needs of different customers.
- Professional Customer Service
Our professional team is always ready to provide technical support and after-sales service to ensure customer satisfaction.
Graphite Block Uses
Metallurgical Industry
- Utilized as electrode materials for arc furnaces and electrolytic cells.
- Stable current conduction and efficient production.
- Excellent durability, reducing replacement frequency and production costs.

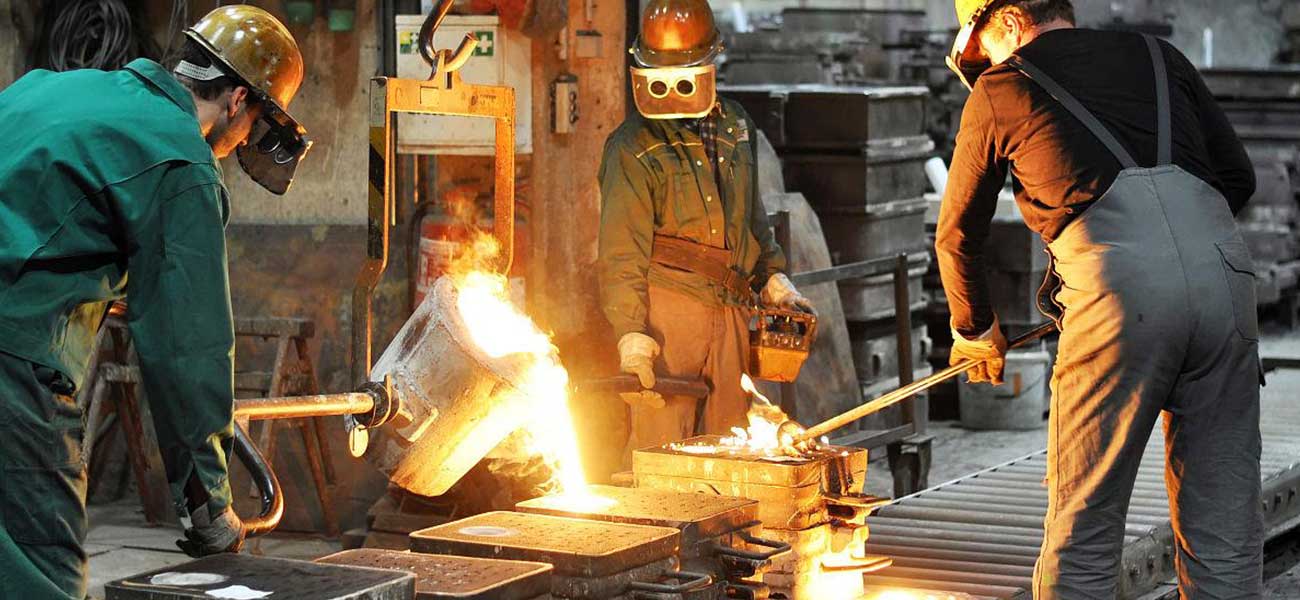

Smelting and Casting
- Employed as smelting protection materials and casting molds.
- Good lubricity and thermal shock resistance, maintaining stability in high-temperature environments without deformation.
- Withstands high temperatures and ensures a smooth, flawless surface of the finished product. Long service life, enhancing production efficiency and product quality.
Refractory Materials
- Used as furnace linings or insulation materials in high-temperature environments.
- Remains intact and stable during repeated heating and cooling cycles.
- Effectively protects furnace structure, quickly conducts and disperses heat, ensuring safe operation of the equipment.
- Maintains consistent thickness and shape in high-temperature environments, providing stable insulation effects.
Graphite Block Price
The graphite block price is influenced by many factors, such as the place of production, technical specifications, manufacturing processes, and import/export policies. We provide competitive quotations taking into account product size, order quantity, raw materials, destination, and freight costs.
Our products are offered at factory prices. If you have any requirements, please contact us as soon as possible!
We can offer custom services as long as you provide PDF/CAD drawings or detailed parameters. If you have special requirements, please feel free to contact us at any time!
Graphite Block Buying Guide
Supply Capacity
- Production Capacity
AGRM owns a large production base with a sufficient inventory of graphite products, ensuring a stable and reliable supply.
- Lead Time
Standard orders are usually completed in 2-4 weeks, urgent orders have expedited options, and customized products have different lead times depending on the complexity.
Payment Terms
- Supported Payment Methods
We accept letters of credit (L/C), telegraphic transfer (T/T), Documents against payment (D/P), Documents against Acceptance (D/A), credit (O/A), etc.
- Trade Terms
We support Ex Works (EXW), ex ship (FOB), Cost and Freight (CFR), Cost and Insurance and Freight (CIF) and delivery duty paid (DDP).
Packaging And Logistics

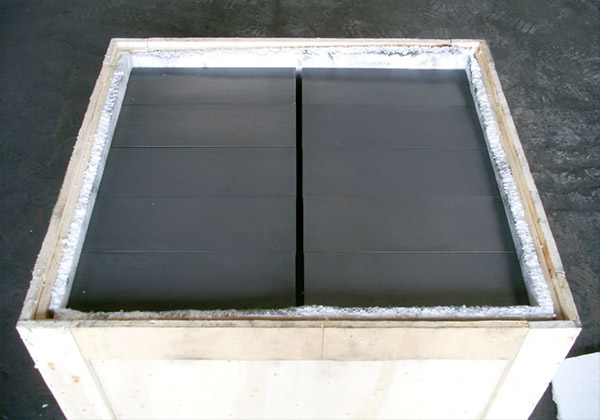

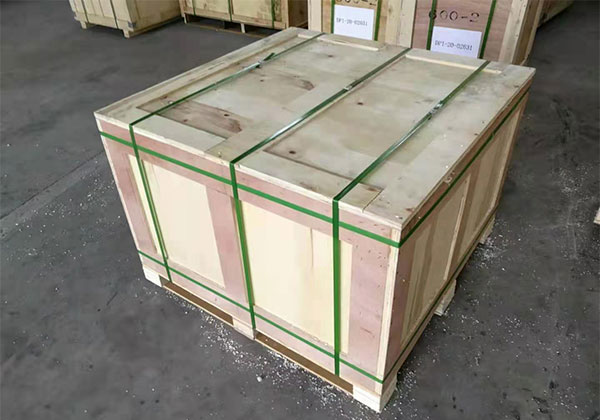

- Packaging
Graphite blocks are carefully packed in wooden boxes. Soft materials such as foam, air cushion film, and paper padding are used to fill the boxes to ensure that the graphite blocks are not squeezed or rubbed during transportation.
- Multiple Transportation Options
We will assist customers to select the most suitable transportation solution according to their needs and budgets, and provide real-time logistics tracking information.
