Silicon Carbide Graphite Crucible
Molten Metals: Gold, silver, copper, brass, aluminum, etc.
Applications: Suitable for all types of furnaces such as coke furnaces, oil furnaces, electric furnaces, etc.
- Refined with High-Quality Refractory Materials and Advanced Technology Formulations.
- Natural Graphite Composition for Optimal Thermal Conductivity.

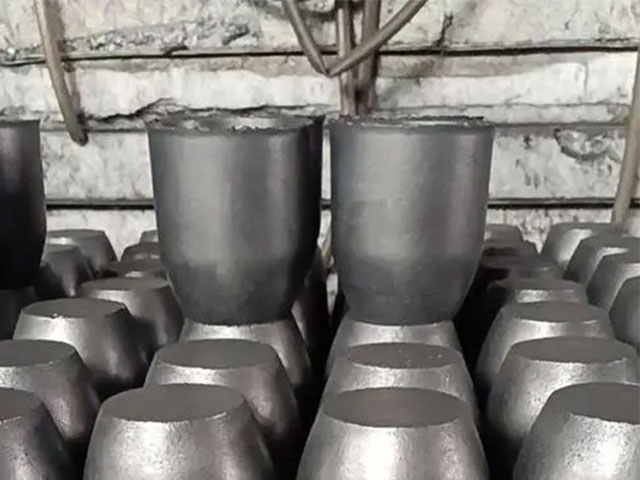

What is Silicon Carbide Graphite Crucible? A silicon carbide crucible is a high-temperature refractory vessel made from graphite and silicon carbide materials, bonded with tar pitch or other synthetic resins, typically dark gray or black. Silicon carbide crucibles come in various shapes, with common ones including basin-shaped for lift-out furnaces, bowl or basin shapes for scoop-out furnaces, “TP” shapes for top-pouring furnaces, nozzle or spout shapes for tilting furnaces, and cylindrical shapes for induction furnaces. Silicon carbide graphite crucibles offer uniform temperature distribution during melting, high strength, and resistance to cracking, making them the preferred choice for casting high-quality metal products.
Why Add Silicon Carbide to Graphite Crucibles?

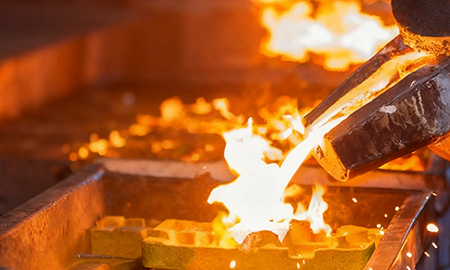

Optimal Thermal Conductivity
- Silicon carbide has a high melting point of about 3000°C, higher than most metals.
- It stays intact without cracking, even when cooled quickly from 1200°C to room temperature, allowing effective use in high-temperature environments.
- Adding silicon carbide to graphite crucibles improves thermal resistance.
- It boosts steel and iron smelting efficiency and saves energy.
Enhanced Chemical Stability
- Silicon carbide demonstrates strong stability against acids and alkalis, along with resistance to oxidation and other chemical reactions.
- It effectively lowers the oxidation rate of graphite crucibles when exposed to high temperatures.
- It enables crucibles to withstand corrosion from diverse molten metals and slag.
- This capability helps preserve the purity of the materials being smelted and extends the lifespan of the crucible.
Advantages of Silicon Carbide Graphite Crucibles
- High-Temperature Resistance
- Silicon carbide crucibles have a melting point of over 2000°C.
- Suitable for melting metals with temperatures below 1800°C.
- Ideal for various high-temperature smelting processes.
- Thermal Shock Resistance
- Crucibles often face thermal stress from uneven temperature changes during use, leading to potential premature damage.
- Resist thermal stress during high-temperature smelting.
- Ensure even heat distribution, preventing damage.
- Corrosion Resistance
- Flowing molten metal and injecting solid metals can cause wear and corrosion on the crucible’s inner walls.
- Silicon carbide graphite crucibles, with a higher silicon carbide content, offer better strength.
- Provide increased hardness and improved corrosion resistance.
- Longevity
- AGRM silicon carbide graphite crucibles undergo strict quality control during manufacturing.
- Ensure high product quality and durability in extremely high temperatures.
- Resist deformation and fracture, resulting in a longer lifespan.
- Cost-effectiveness
- Silicon carbide graphite crucibles are generally the most cost-effective option.
- Their durability and oxidation resistance reduce the frequency of replacements.
- Lowers overall operational costs.
- Low Metal Contamination
- Using SiC graphite crucibles in high-temperature melting leads to lower metal contamination compared to other crucibles.
- Excellent chemical stability of silicon carbide.
- It minimizes metal losses and maintains high purity of metal products.
AGRM is a professional graphite product and graphite electrode supplier from China with years of export experience. We are committed to providing exceptional graphite solutions to meet your high-temperature industrial application needs! Additionally, we manufacture a variety of other graphite products, including graphite electrodes, graphite blocks, graphite sheets, graphite felt, etc.
We can offer custom services as long as you provide PDF/CAD drawings or detailed parameters. If you have special requirements, please feel free to contact us at any time!
Applications of Silicon Carbide Graphite Crucibles
Metallurgical Industry
- Used primarily for smelting non-ferrous metals and their alloys such as aluminum, copper, etc.
- Withstand the thermal stress of high-temperature smelting, ensuring minimal deformation and cracking.
Foundry Industry
- Employed in precision casting processes for melting steel, iron, aluminum, and other alloys.
- High temperature and corrosion resistance ensure the purity of molten metals and reduce casting defects.
Chemical Industry
- Utilized in the production of high-temperature, highly corrosive chemical products such as ceramics, glass, and petrochemical products.
- Withstand strong acids and alkalis, extending their service life.
Why choose AGRM?
- Experienced Manufacturer
AGRM is a leading refractory materials manufacturer in China with nearly 20 years of dedicated research and development in refractories. We possess a strong technical background and offer professional technical support and customized solutions to meet diverse customer needs and applications.
- Experienced Manufacturer
AGRM is a leading refractory materials manufacturer in China with nearly 20 years of dedicated research and development in refractories. We possess a strong technical background and offer professional technical support and customized solutions to meet diverse customer needs and applications.
- High-quality Materials and Manufacturing Processes
Our materials undergo strict control and supervision, utilizing premium silicon carbide and graphite materials combined with advanced manufacturing processes to ensure the consistent quality and durability of each crucible, providing customers with reliable long-term products.
- Wide Product Range and Customization Capability
Employing precision CNC machining, we offer products in various specifications and shapes, customizable to meet specific customer requirements, including the production of various high-difficulty graphite products. Whether standard sizes or special-shaped crucibles, we provide flexible solutions.
- Competitive Pricing and Delivery Times
By optimizing our supply chain and production processes, we control costs effectively to offer competitive prices. Simultaneously, our efficient production capacity ensures timely delivery, meeting customer production schedules.
- Comprehensive After-sales Service and Technical Support
AGRM provides one-stop service including pre-sales, in-sales, and after-sales support, handling customer inquiries, providing advice, guidance, and tracking product transportation until receipt. We actively listen to customer feedback and continuously optimize product performance to ensure customer satisfaction and trust.
How to Extend the Lifespan of Silicon Carbide Graphite Crucibles
- Pre-heat Before Use
Newly acquired crucibles should be slowly heated to 200°C and maintained for 2 hours before gradually reaching the target operating temperature. This process removes moisture and impurities, preventing stress damage from sudden high temperatures.
- Regular Inspection and Cleaning
Periodically inspect both the inside and outside surfaces of the crucible for cracks, defects, or severe oxidation. After each use, promptly remove residual melts and oxides. Use soft brushes or specialized cleaning tools to avoid scratching the crucible surface.
- Controlled Heating and Cooling Rates
Avoid rapid temperature changes during heating and cooling. Operate within a recommended rate of not exceeding 150°C per hour to prevent thermal stress damage to the crucible material and maintain structural integrity.
- Proper Storage Conditions
Store crucibles in dry, well-ventilated environments to prevent moisture absorption and exposure to corrosive gases. In storage, invert crucibles to prevent dust and debris from entering the interior, keeping them clean.
- Prevent Mechanical Damage
Handle crucibles with care during handling and loading to avoid collisions and drops that could cause mechanical damage. Use professional handling tools and methods, especially when crucibles are more fragile at high temperatures.
- Regular Annealing Treatment
After prolonged use, internal thermal stresses may develop within the crucible, affecting its structural stability. Periodic annealing treatment is recommended by slowly heating the crucible to 900°C, holding it for a specified time, then slowly cooling it to room temperature.
Packing And Shipping
- Multiple Transportation Options
We will assist customers to select the most suitable transportation solution according to their needs and budgets, and provide real-time logistics tracking information.

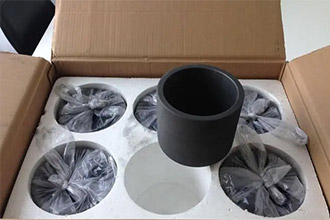

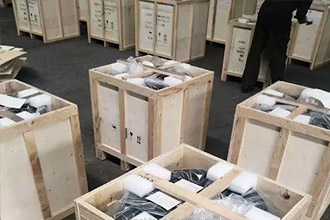

- Professional Packaging
Our silicon carbide crucibles are packed in sturdy wooden or cardboard boxes lined with shock-cushioning materials such as foam pads or foam wrap to provide additional shock absorption and minimize the risk of shock damage during transport. For specially sized silicon carbide crucibles, we use custom packing boxes and additional support measures. In addition, our packaging is carefully marked with operating instructions and product information to ensure proper identification and handling by logistics personnel.
