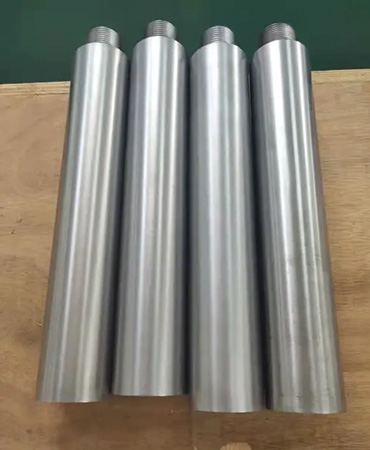

Molybdenum Electrode

Home » Molybdenum Electrode

Appearance: Bright silvery-gray metallic luster, with a high surface finish.
Specifications: Produced according to user requirements. (Φ1-Φ150)×2500(mm), with a maximum single piece weight of up to 100kg.
Applications: Mainly used for full electric melting or electric-assisted glass furnaces, and also for the rare earth industry.

Molybdenum electrodes are made from molybdenum powder through pressing, sintering, forging, and subsequent processing. The molybdenum content is 99.95%, and the density is greater than 10.15g/cm³. Molybdenum electrodes have high strength, good oxidation resistance at high temperatures, long service life, and can effectively reduce environmental pollution. Common molybdenum electrode sizes range from 20mm to 152.4mm in diameter, with a single length of over 1500mm.

AGRM Molybdenum Electrode Products

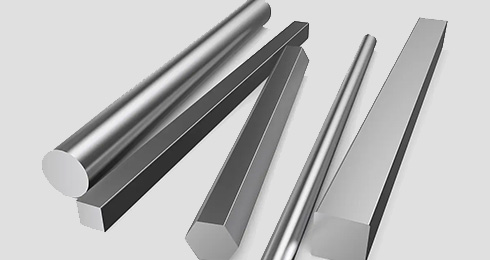

Molybdenum Rod(Bar) / Molybdenum Square Rod (Bar)

Surface Condition: Black, alkaline wash, machined, polished.
Applications: Mainly used for manufacturing electric vacuum parts, lead rods, electrodes, lead wires, high-temperature parts, and furnace heating rods.

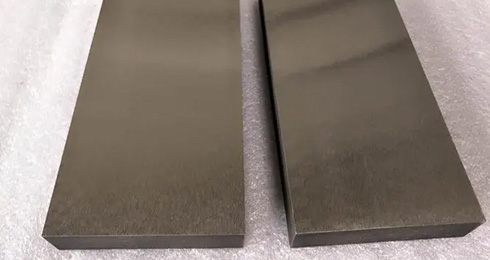

Molybdenum Plate

Surface Condition: Black plate, alkaline wash plate, polished plate.
Applications: Used as electric light source parts, high-temperature structural parts, high-temperature insulation screens, and target materials.

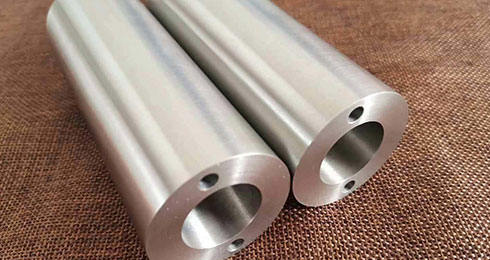

Molybdenum Tube

Material: High-purity molybdenum/high-temperature molybdenum.
Categories: Sintered molybdenum tube, forged molybdenum tube.
Applications: Can be used as protection sleeves for tungsten-rhenium thermocouples, grid plates, and cathode support tubes for high-power electronic tubes, sputtering targets, etc.

As a leading supplier of graphite electrodes and refractory materials, AGRM has the most advanced laboratories, dedicated to improving the performance of our molybdenum electrode products. Through collaboration with customers, AGRM continues to create innovative products with advanced high-performance characteristics. Our products also include graphite electrodes(RP, HP, SHP, UHP), graphite sheets, graphite crucibles, etc.

We can offer custom services as long as you provide PDF/CAD drawings or detailed parameters. If you have special requirements, please feel free to contact us at any time!

Advantages of AGRM Molybdenum Electrodes

Made with high-quality molybdenum and refining processes, with a purity of 99.95%.

Withstands extreme temperatures, maintaining stable performance in harsh industrial environments.

Maintains material performance at high temperatures.

Ensures stable current transmission, reducing energy loss.

Resists chemical corrosion, extending service life and reducing maintenance costs.

Meets international environmental standards, reducing environmental pollution and demonstrating corporate responsibility.

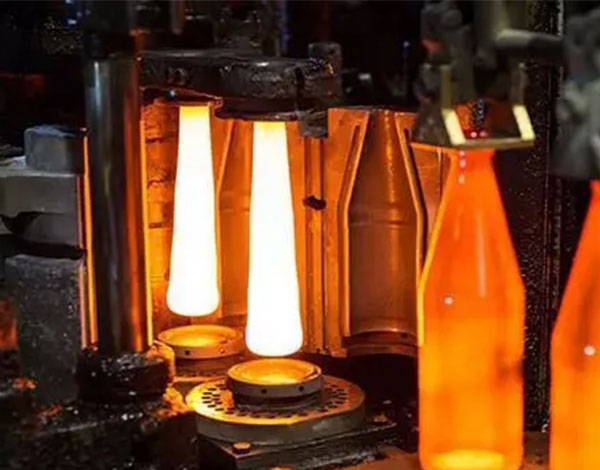

Applications of Molybdenum Electrodes

Ensures uniform melting, creating clear and transparent glass products.

High-precision melting, giving optical glass excellent optical properties.

Stable operation at high temperatures, producing efficient insulation materials.

Uniform heat conduction, enhances the strength and flexibility of glass fiber.

Provides the necessary high-temperature environment in refining and processing.

Molybdenum Electrodes in the Glass Industry

The glass industry is a crucial part of modern manufacturing, with glass products widely used in construction, automotive, electronics, and daily life. Especially in high-end applications such as optical glass, special glass, and electronic displays, these applications require highly precise and high-quality production processes to ensure glass products have high transparency, high strength, and high-temperature resistance. To achieve these goals, the glass industry demands extremely high standards for production equipment and materials, making molybdenum electrodes indispensable due to their excellent physical and chemical properties.

Molybdenum Electrode Usage Precautions

1. For higher glass quality and longer molybdenum electrode life, use a lower surface current density, recommended at 0.7-1A/cm².

2. Implement strict anti-oxidation measures.

Correct Usage Steps

Ensure the molybdenum electrode and equipment are clean and free of impurities.

Follow the equipment instructions for proper electrode installation and secure fastening.

Gradually increase the temperature to avoid sudden changes, preventing electrode damage.

Adjust the current to the appropriate range according to usage requirements.

Ensure the electrode heats evenly to avoid local overheating.

Storage Guidelines

Store in a dry, well-ventilated environment to avoid moisture.

Use protective packaging to prevent electrode damage.

Keep away from corrosive substances to prevent material corrosion.

Regularly check the storage condition to ensure the electrodes remain intact.

Stack electrodes reasonably to avoid heavy pressure and deformation.

Why choose AGRM?

Molybdenum electrodes are generally made to customer specifications based on drawings. For diameters less than 50mm, the delivery time is 3-7 days. For diameters greater than 50mm, it is 5-15 days.

Molybdenum electrodes are carefully packed in wooden boxes, supported by soft materials to prevent movement during transport. This ensures the products remain secure throughout the packaging process.

We will assist customers to select the most suitable transportation solution according to their needs and budgets, and provide real-time logistics tracking information.

Provide molybdenum electrodes of different sizes and shapes according to customer needs, suitable for various furnace designs with high product precision.

Advanced manufacturing technology and quality control ensure consistent product performance and reliable quality.

Guarantee fast and reliable global supply, no matter where you are.

Suitable for glass manufacturing, electric light sources, electronics, and metallurgy, meeting different glass chemical needs.
